Autel IM608 IMMO application requires a data link to the IMMO electronic
control system of the test vehicle for diagnosis via OBD II connection. The
application retrieves vehicle IMMO information and performs IMMO related
functions,including Key Learning, Remote Control Learning, Remote Control Add,
etc.
Smart
Mode – accesses to a function menu where each
function is configured as a smart guide system.
After a mode is selected and the tablet establishes
communication with the vehicle, the corresponding function menu or selection
menu displays.
Smart
Mode
The Smart Mode provides guided functions
with step-by-step instructions.
Once the test vehicle is identified, a
vehicle profile will display, select Yes to continue.
The tablet will access the vehicle IMMO ECU
to read IMMO related information. Press OK to continue. Then the vehicle key
status will display.
Read the vehicle key status carefully and
press OK to display the function menu.
Take
Autel IM608
Programmer Key Learning as an example.
1. Select Key Learning from the function
menu. The tablet will automatically start to read IMMO data.
2. When Read IMMO data completes, the tablet
will prompt a “Do you need to make dealer key?” message, select Yes to confirm,
or select NO to quit the operation.
3. Follow the onscreen instruction to place
a Blank Key in the XP400 key slot and press OK to continue.
4. If the new key is blocked, the tablet
will ask if you want to unlock the key, select Yes to continue, or select NO to
quit the operation.
5. A “Make dealer key success!” message
displays when the process is completed successfully.

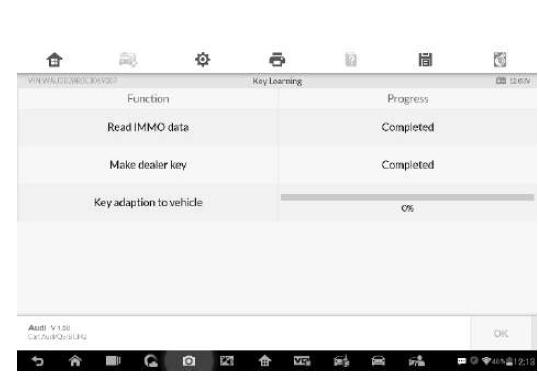

6. Then the tablet will automatically move
to the next step, Key adaption to vehicle, and the following message will
prompt up.
7. Make selections according to the test
vehicle.
8. Input the numbers of the keys to be
learned and press OK to continue.
9. Follow the onscreen instructions to
insert the key to be learned into the vehicle ignition switch.
10. When Key Learning is completed successfully,
the following screen displays. Press OK to exit the function.
